Rectangular Tanks

Optimized storage for any indoor or outdoor space

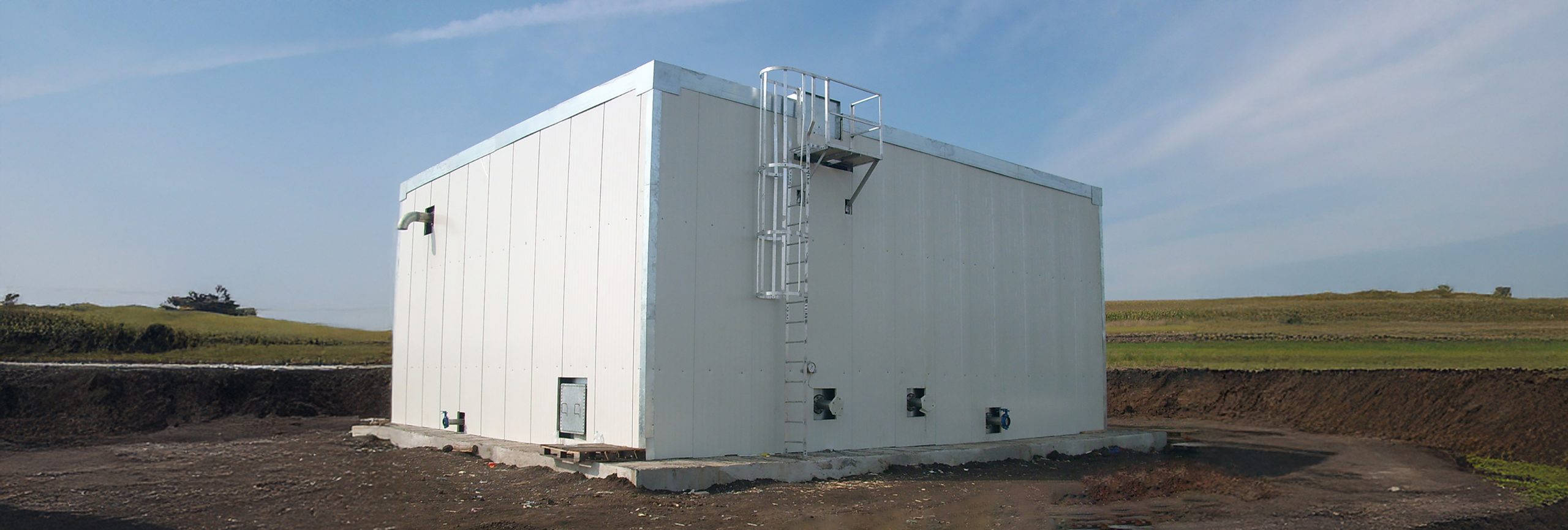

Rectangular storage tanks with flat roofs, available in capacities from 5 m³ up to 1,000 m³, in rectangular or modular shapes tailored to the available installation space.

Advantages

Lower costs compared to welded carbon steel and other types of tanks.

Easy and fast installation: for example, a 200 m³ tank can be installed in less than 10 days.

Ergonomics: the parallelepiped shape allows optimal use of indoor or outdoor space, maximizing stored liquid volume

Mobility: tanks can be dismantled and reinstalled at other locations

Galvanized steel with high corrosion resistance

Design details

The tanks are designed and engineered to overcome space limitations—indoors or outdoors—with the precise goal of maximizing the storage volume while adapting to the existing process flows and meeting all applicable standards.

Our rectangular storage solutions are engineered according to static and dynamic load calculations, as well as wind, seismic, and snow loads, wherever applicable.

Based on geotechnical studies of the location of the site, Highberg Solution also prepares the drawings for the concrete foundation for each tank. This service is included in the price of the equipment, helping to reduce the construction costs and, in turn, the long-term storage costs — a standard with which our partners are already used to.

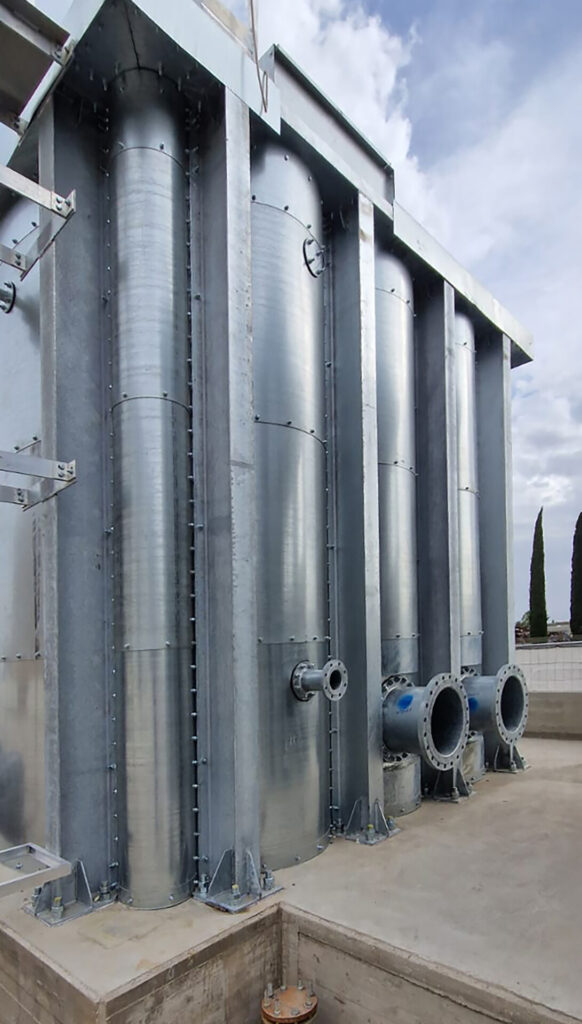

Highberg-Solution-Rezervoare-Tanks-Rectangular1-001

Components

Roof – Configurable with simple flat roof solutions with a drainage slope, made from sandwich panels, and rainwater drainage systems.

Tank body – Made from hot-dip galvanized structural steel panels with up to 600 g/m² Zn coating, with a thickness ranging from 2 to 10 mm, optionally painted in any RAL color,. The panels are assembled with fasteners and connected to the hydraulic piping system serving the process flow.

Thermal insulation – Applied externally, using sandwich panels or mineral wool, based on heat transfer calculations applicable for the location of site. Can also be customized at the client’s request according to required process temperatures.

Liner – Installed inside the tank to eliminate direct contact between the fluid and the metal structure. The type of material from which the liner will be made will be chosen depending to the stored fluid, its concentration and temperature, ensuring the total absence of chemical reaction between the material and the fluid.

Accessories – We offer a wide range of accessories, including: heating coils (any format), vertical ladders of all types and standards, advanced SCADA automation and monitoring systems, immersion heaters up to 12 kW, various side access manways for maintenance, and complex hydraulic systems in stainless steel or hot-dip galvanized steel.

Applicable standards and specific certifications

The design and production of HIGHBERG SOLUTION tanks is carried out in compliance with the strictest international standards and certifications: FM Global, NFPA, VdS, EN 1090-1, EXC2, ISO 9001, ISO 14001, ISO 45001 etc.
