Stainless Steel Tanks

Solutions adapted to aggressive industrial environments

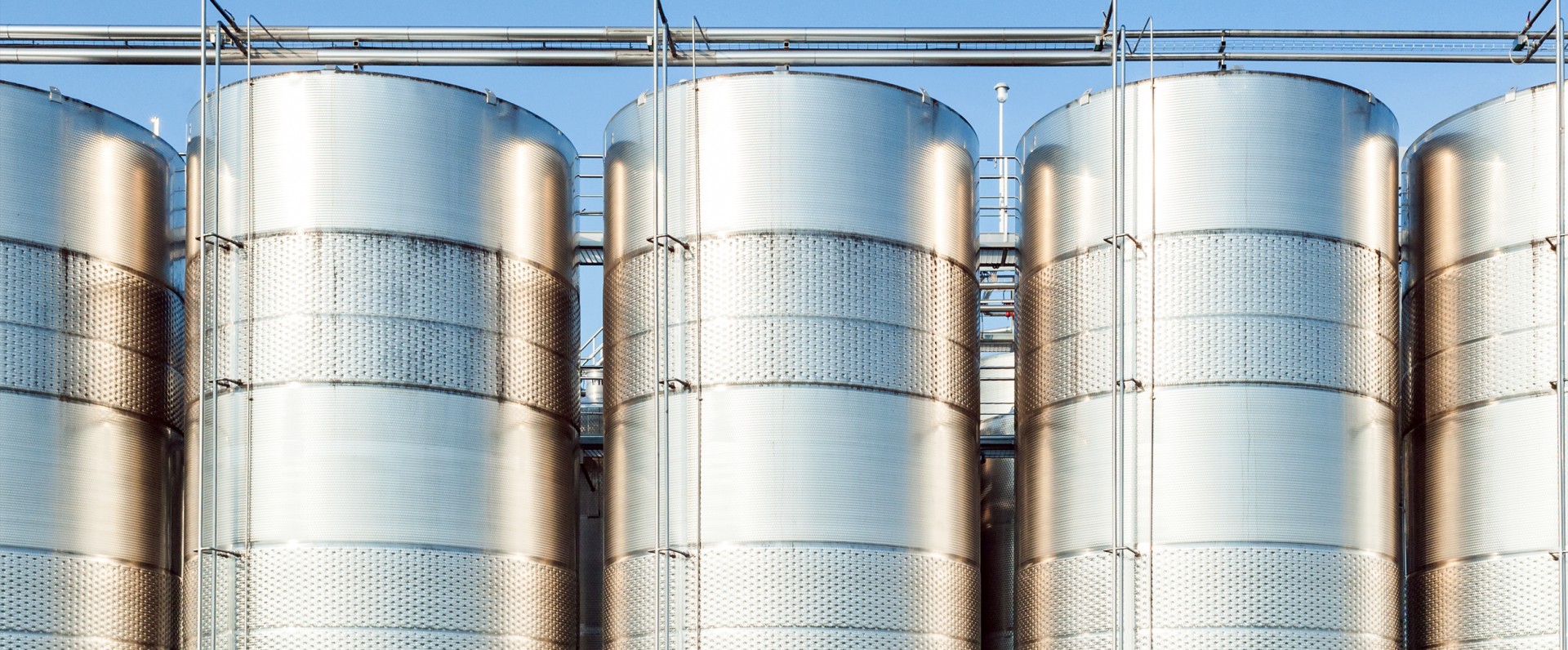

Cylindrical stainless steel tanks, welded or bolted with inner sealing membrane, which can be configured in multiple volumes, from 10 m3 to 5,000 m3, with a wide range of roofs: flat, conical and dome roofs.

Advantages

Highest degree of corrosion resistance in aggressive environments

Suitable for drinking water, food, beverages, chemicals, and solutions and powders in the pharmaceutical industry.

30+ year lifespan with minimal maintenance.

Flexibility and ergonomics: Increasing the storage capacity of tanks can be achieved easily and at minimal cost.

Made of various types of stainless steel depending on the application.

Design details

Each tank is designed individually or as a storage system integrated into the technological process, based on any strict requirements of the project theme and the required regulations, in order to reduce a wide range of the total operational costs of the beneficiary.

The parallelepiped storage solutions produced by our company are designed based on all calculations of static and dynamic loads, wind (if applicable), earthquake and snow (if applicable) applicable to any location.

Every Highberg Solution project includes foundation design, orientation and positioning of all internal piping, and full interconnection with process equipment. These services are included in the price of every tank solution and are strictly defined for each project.

Components

Roof: Depending on the liquid stored and the diameter of these tanks, roofs can vary from simple solutions – flat with a drain slope, to more complex structures – conical or dome

Tank Body: It is composed of stainless steel panels, with thicknesses between 2 and 12 mm, joined by torque-tightening fasteners according to the structural calculations, on which the hydraulic piping system that will serve the technological flow is connected. Also based on these calculations, the anchoring systems, the necessary bracing and the rest of the subassemblies in the accessories requested by each customer are determined and included.

Membrane (only in the bolted version) – like thermal insulation, it is mounted inside the tank, having the task of eliminating direct contact between the fluid and its metal structure. The choice of the type of material from which the membrane will be made will be made according to the stored fluid, its concentration and temperature, ensuring the total absence of chemical reaction between the material and the fluid.

Accessories: We can offer a complex range of accessories, starting from heat coils (in any format), spiral and vertical ladders of any type and standard, complex SCADA automation and monitoring systems, immersed electric heaters with capacities up to 12kw, different types of side accesses for maintenance, complex stainless steel hydraulic systems.

Applicable standards and specific certifications

The design and production of HIGHBERG SOLUTION tanks is carried out in compliance with the strictest international standards and certifications: FM Global, NFPA, VdS, EN 1090-1, EXC2, ISO 9001, ISO 14001, ISO 45001 etc.
